Single-handed Control, Ultra Portable
Scantech SIMSCAN, the only hand-sized 3D scanner in the market so far, is a disruptive innovation of the traditional 3D scanners’ structure and a revolutionary product in 3D optical metrology industry.
Scantech SIMSCAN 42
Scantech SIMSCAN 42

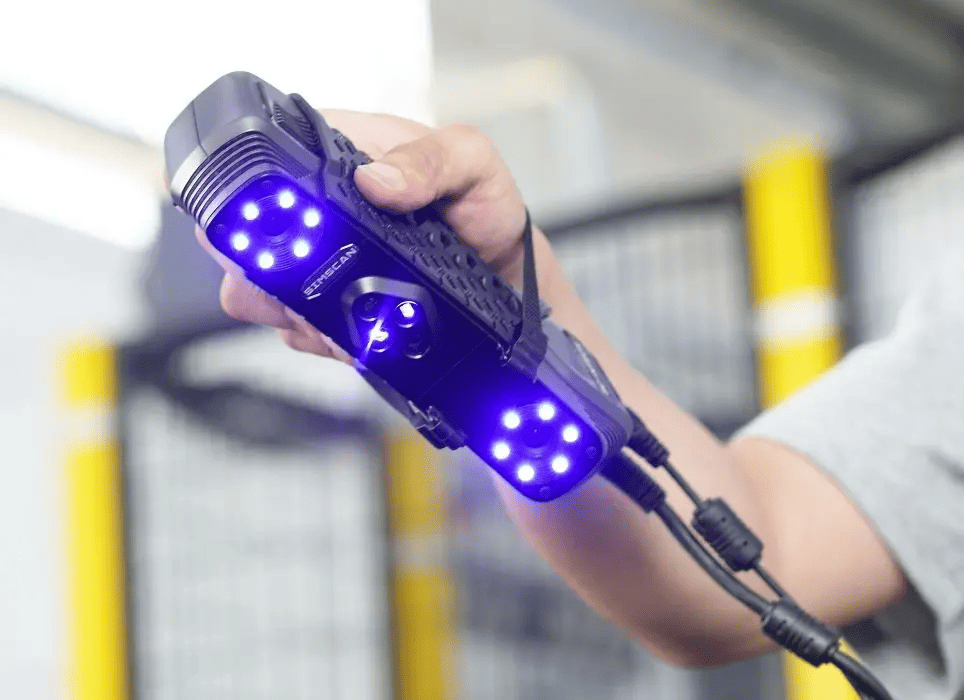

The Scantech SIMSCAN is a palm-sized, portable 3D scanner specifically engineered for scanning tight and challenging-to-reach areas.
Its full-metal housing ensures exceptional durability, and its compact design, coupled with robust performance, makes it a disruptive innovation in the realm of professional 3D scanners.
- Single-handed control
- Ultra portable
- Narrow-space Measuring Booster
- Aesthetic design
Single-handed Control
The Scantech SIMSCAN portable 3D scanner boasts a full-metal housing that offers exceptional protection and durability. With a weight of only 570 g and dimensions of 203 × 80 × 44 mm, it provides unparalleled ease of use, allowing for effortless one-handed scanning of any object.
Because of its hollow structure, it dissipates heat more effectively. The 3D scanner is efficient at performing measurements with low power consumption. Thanks to its versatility, it can meet a wide range of needs of 3D measurements.
Narrow-space Measuring Booster
Compared with its competitors, Scantech SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper view angle to 3D scan narrow spaces. Therefore, SIMSCAN is more capable of capturing accurate and complete data in hard-to-reach areas like deep grooves and ensures users to capture full-field data.
Remarkable Portability
Scantech SIMSCAN boasts a compact size and excellent portability. No matter in narrow spaces or under huge objects, Scantech SIMSCAN portable 3D scanner can conduct 3D measurements anywhere and anytime. When paired with wireless communication link AirGo Pro, it supports mobile 3D scanning and data viewing for truly flexible, reliable, and effective measurement experiences.
With its multifunctional buttons, users can switch between different modes at any time. Its single-handed operation allows flexible measuring and its ergonomic design makes it comfortable to use. Designed with an anti-slip housing and a strap, it is safe for users to scan in all directions freely.
Efficiency and Precision with Scantech SIMSCAN
Scantech SIMSCAN, a palm-sized portable 3D scanner, is revolutionizing 3D scanning in hard-to-reach areas. Its full-metal housing ensures robustness, and it has won prestigious design awards for its compact size and performance. This metrology-grade 3D scanner offers a high-quality scanning experience in narrow spaces and large-scale applications, delivering detailed 3D models rapidly. With a scanning rate of up to 2.8 million measurements per second and compatibility with automated 3D measurement systems, Scantech SIMSCAN guarantees efficiency and precision in every scan, making it an invaluable tool for a wide range of industries.
Why Choose The Scantech SIMSCAN 42?
Handheld 3D scanners have become indispensable tools for professionals across various industries, and for a good reason. They offer unparalleled flexibility and freedom of movement, allowing you to effortlessly capture intricate details, complex geometries, and challenging surfaces. Here’s why our handheld 3D scanners are the preferred choice for professionals:
1
Compact and Versatile
Scantech SIMSCAN 42’s palm-sized design allows it to access narrow and hard-to-reach areas with ease, making it ideal for a wide range of applications. Its full-metal housing ensures durability and reliability, and its compact size doesn’t compromise on performance.
2
High-Speed Scanning
With a scanning rate of up to 2.8 million measurements per second, Scantech SIMSCAN 42 offers rapid and efficient 3D digitization. Its sophisticated algorithm ensures a smooth scanning experience, enabling users to capture intricate details quickly.
3
Automation Ready
Pair Scantech SIMSCAN 42 with Scantech’s automated 3D measurement system for continuous, high-batch measurements. This automation enhances manufacturing efficiency and overcomes the limitations of traditional methods, making it a valuable asset in various industries.
Technical Specifications
| Type | SIMSCAN 42 | SIMSCAN 30 | SIMSCAN 22 | |
|---|---|---|---|---|
| Scan mode | Ultra-fast scanning | 17 blue laser crosses | 11 blue laser crosses | 7 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines | |||
| Deep hole scanning | 1 extra blue laser line | |||
| Accuracy(1) | Up to 0.020 mm | Up to 0.020 mm | Up to 0.020 mm | |
| Scanning rate | Up to 2,800,000 measurements/s | Up to 2,020,000 measurements/s | Up to 1,250,000 measurements/s | |
| Scanning area | Up to 700 mm × 600 mm | Up to 650 mm × 550 mm | Up to 650 mm × 550 mm | |
| Laser class | CLASSⅡ (eye-safe) | CLASSⅡ (eye-safe) | CLASSⅡ (eye-safe) | |
| Resolution | Up to 0.020 mm | Up to 0.020 mm | Up to 0.020 mm | |
| Volume accuracy(2) | Standard | 0.015 mm + 0.035 mm/m | 0.015 mm + 0.035 mm/m | 0.015 mm + 0.035 mm/m |
| Paired with MSCAN-L15 | 0.015 mm + 0.012 mm/m | 0.015 mm + 0.012 mm/m | 0.015 mm + 0.012 mm/m | |
| Stand-off distance | 300 mm | 300 mm | 300 mm | |
| Depth of field | 550 mm | 550 mm | 550 mm | |
| Output formats | pj3, asc, igs, txt, mk2, umk, stl, ply, obj | pj3, asc, igs, txt, mk2, umk, stl, ply, obj | pj3, asc, igs, txt, mk2, umk, stl, ply, obj | |
| Operating temperature range | -10℃–40℃ | -10℃–40℃ | -10℃–40℃ | |
| Interface mode | USB 3.0 | USB 3.0 | USB 3.0 | |
| Dimensions | 203 mm × 80 mm × 44 mm | 203 mm × 80 mm × 44 mm | 203 mm × 80 mm × 44 mm | |
| Weight | 570 g | 570 g | 570 g | |
| Patents | CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S | |||
Discover everything you need to know about Scantech SIMSCAN 42 with our
comprehensive specification breakdown.
Frequently Asked Questions
The SIMSCAN-42 is designed as a pocket-sized 3D scanner, making it convenient for portable use without compromising precision.
The device offers rapid data processing, allowing users to obtain high-precision 3D data in seconds.
Indeed, the device is paired with its dedicated software that provides intelligent scanning paths and automatic data alignment, enhancing the overall scanning experience.
